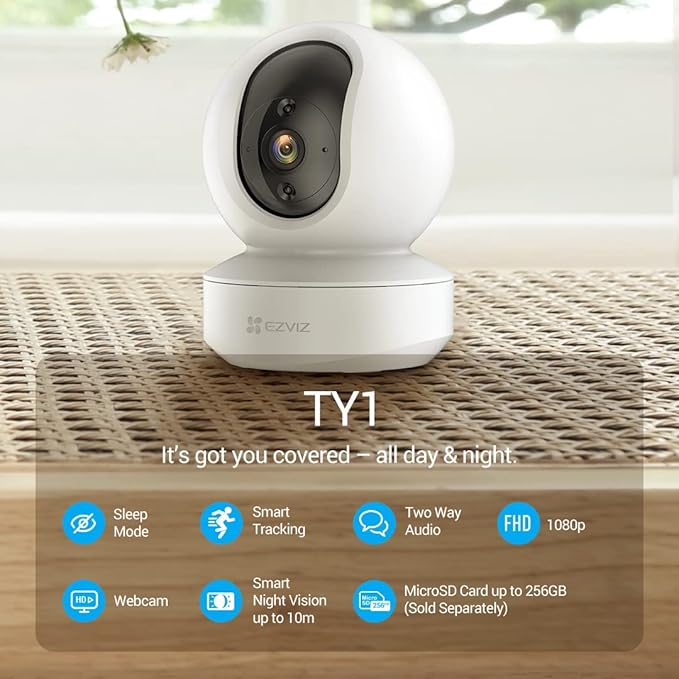

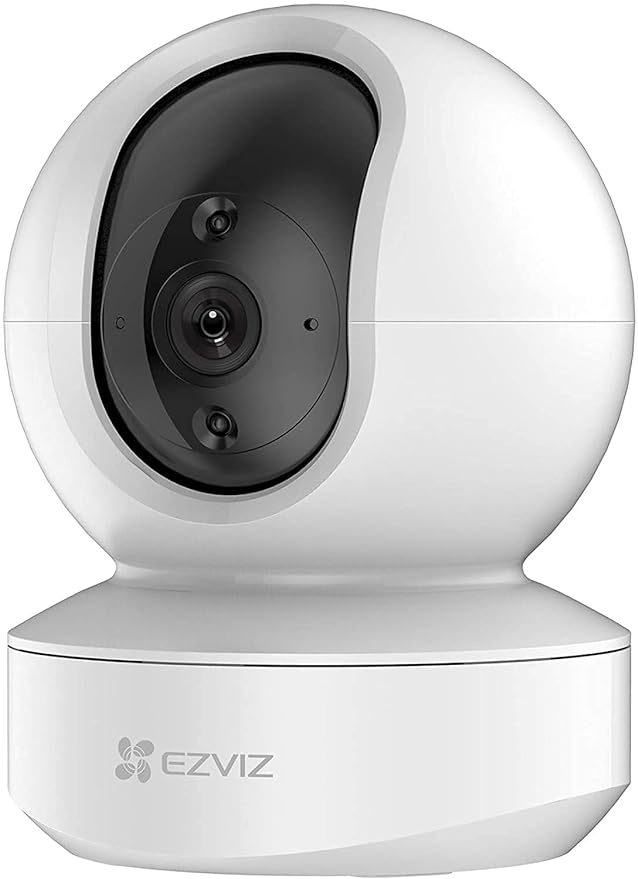

EZVIZ CS-TY1(1080P) Smart Home WiFi CCTV Camera

Camera
Model	Model CS-TY1-B0-1G2WF
Image sensor	1/3 inch progressive scan CMOS
Shutter speed	Self-adaptive shutter
Lens	4mm at F2.4, Angle of view: 85° diagonal, 75° horizontal, 45° vertical
Lens mount	M12
Day and night	Infrared pass filter with automatic switching
Digital Noise Reduction (DNR)	3D digital noise reduction
Wide Dynamic Range (WDR)	Digital wide dynamic range
Compression
Video compression	H.264
Video bit rate	Full HD; HD; Standard. Adaptive bit rate.
Max resolution	1920 × 1080
Frame rate	Max: 15fps; Self-adaptive during network transmission
Grid
Smart alarm	Motion detection
Wi-Fi Linking	Access Point Binding
Protocol	EZVIZ Cloud-Based Proprietary Protocol
Interface protocol	EZVIZ Cloud-Based Proprietary Protocol
Connection
Storage	microSD card slot (max. 256 GB)
Feeding	Micro USB
Wired network	1 RJ45 (10M/100M self-adaptive Ethernet port)
Wifi
Standard	IEEE 802.11b/g/n
Frequency range	2.4GHz-2.4835GHz
Channel bandwidth	Supports 20 MHz
Security	WEP 64/128 bit, WPA/WPA2, WPA-PSK/WPA2-PSK
Transmission speed	11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps
Operating environment
Temperature	-10°C to 45°C
Humidity	95% or less (non-condensing)
General
Power supply	5V DC/1A
Energy consumption	5W max.
Infrared range	Max. 10 meters
Dimensions	88 x 88 x 118.7 mm
Packaging dimensions	103 x 103 x 186 mm
Net weight	259 g
Box contents:
Box contents:	TY1 Pan/Tilt Camera; Base; Screw Kit; 3m Power Cable; Drilling Template; Power Adapter; Quick Start Guide
